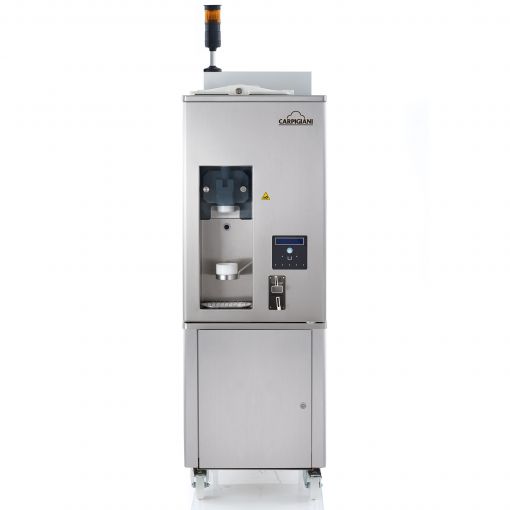

241 Magica

Single flavor counter top machine, with pump, self service

The Magica machine is a fully independent, token operated machine

High efficiency components
Achieve top performances and non-stop production

High performance machine
Its best location is in sites with many potential consumers, such as shopping centers, arcades, water parks, amusement parks, etc

Overrun and consistency control
Different consistency control settings for various mix types and easy adjustable overrun

Optional configurations

With our self-pasteurizating system the machine can be cleaned and disassembled 9 times per year
Teorema Remote Control
It gives very important info about the machine, it facilitates the service system and helps the cleaning schedule
Protected dispensing
After placing the cup on the cup holder and having selected the flavour, the gelato is dispensed, always in a protected area

Features & Benefits

Direct expansion cooling cylinder
Optimizes refrigeration efficiency for fast freeze downtime, less waste of product ensuring higher quality and energy saving
Rear chimney and reduced footprint
Space optimization and machine installation next to each other
Interactive display
Communicates with the user giving him instructions and data regarding the performance of the machine
Gear pump
It pressurizes the mix with air and feeds the production cylinder for a creamier gelato with a high volume increase
Easy to use
4 simple and intuitive steps to dispense the gelato: 1) introduce the token, 2) position the cup/cone, 3) choose the flavour, 4) remove the cup/cone
High capacity cylinder
Perfect for all dispensing circumstances, including the moments of greater production pressure
Product protection
The upper refrigerated tank lid is key locked to prevent product contamination
Simplified cleaning
Cleaning is facilitated thanks to the possibility of heating the cylinder and to the easy disassembly of the dispensing unit
Technical Characteristics
flavour 1
Mix Delivery System Pump
Cylinder Capacity
lt 1,75
Tank Capacity
lt 13
Hourly production
75 gr portions 320 (production capacity depends on the mix used and the room temperature).
Cooling System Air (water optional)
Hz 50*
Ph 3*
Volt 400*
Fuse Size A 10
Rated Power Input kW 2,9
Refrigerant R452 (Alternative solutions available)
Net Weight kg 220
Note Other voltages and cycles available upon request. 241 Magica is produced by Carpigiani with Quality System UNI EN ISO 9001. All specifications mentioned must be considered approximate; Carpigiani reserves the right to modify, without notice, all parts deemed necessary
