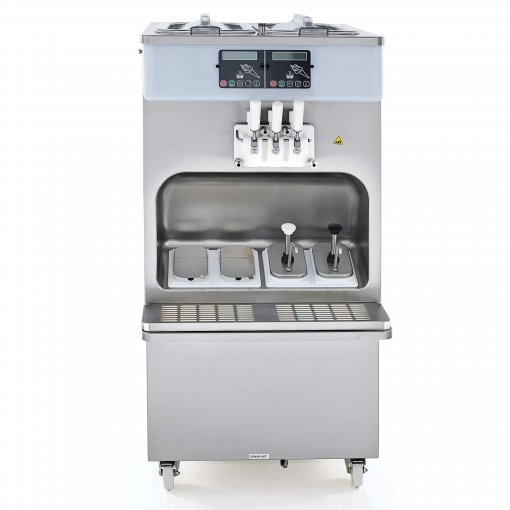

K503

Twin twist floor standing machine

Perfect for customers looking for a high performance machine.

This machine guarantees versatility and flexibility with excellent production performances

Two motors and two compressors
Thanks to the two combined motors with the two compressors, which are both independent and have separated controls, they allow you to use only one side of the machine

Overrun and consistency control
Different consistency control settings for various mix types

Standard configurations

Self-pasteurization
With our self-pasteurization system the machine can be cleaned and disassembled only 9 times per year

Optional configurations

Teorema Remote Control
It gives very important info about the machine, it facilitates the service system and helps the cleaning schedule
Self closing device
The dispensers close automatically stopping the flow of ice cream, eliminating any waste and preventing mess
Dry Filling System
Possibility of preparing the mix directly in the hopper by adding water and dry mix

Features & Benefits

Independent refrigeration system
Allows to work with different products in the two cylinders
Stainless steel pressurized gear pump in Advanced Thermoplastic Polymer (P model)
The pump ensures the best ice cream texture, quality and high overrun, adjustable from 40% to 80%
Interactive display
Communicates with the operator delivering instructions and data regarding machine performance
Removable pump shaft
For easier cleaning procedures, maximum hygiene and Reliability
Tank agitators
Prevent product stratification and helps to reduce foam by maintaining a fluid consistency
High efficiency beaters
Stainless steel beaters with double spirals and idler for the Pump version
Adjustable ice cream flow
Adjustable product flow to meet your specific dispensing speed and volume requirements
Fountain pump and covered containers for toppings
Two fountain pumps for hot topping and two covered containers for cold toppings
Direct expansion cooling cylinders
Optimize refrigeration efficiency for fast freeze downtime, less waste of product ensuring higher quality and energy saving
Defrost system
Possibility to heat the cylinders to simplify the cleaning procedure
Technical Characteristics
flavour 2+1
Mix Delivery System Pump
Cylinder Capacity
lt 1,75
Tank Capacity
lt 20+20
Hourly production
75 gr portions 800 (production capacity depends on the mix used and the room temperature)
Electrical
Cooling System Air
Hz 50*
Ph 3*
Volt 400*
Fuse Size A 16
Nominal Power kW 5.2
Refrigerant
Refrigerant R452 (alternative solutions available)
Dimensions
W x D x H cm max 72,3 x 109,8 x 152
Net Weight kg 410
Note
Note * other voltages and cycles available upon request. K503 is produced by Carpigiani with Quality System UNI EN ISO 9001. All specifications mentioned must be considered approximate; Carpigiani reserves the right to modify, without notice, all parts deemed necessary.
