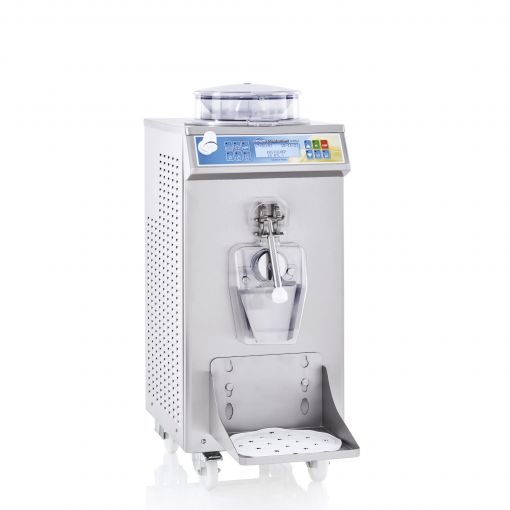

Pastochef 18 RTL
Electronic Pasteurizing Machines for Confectionery and Gastronomy
18 pastry programs, 9 programs for working chocolate, 8 special programs designed for desserts, 7 gastronomy programs, 4 Gelato Mix programs, Mix pasteurization and Mix aging
All of the programs maintain consistent and specific temperatures for each of the cycles to produce high quality standardized results every time. Programs can also be modified to the users’ needs and recipes. The large display shows all the suggestions for the progressive introduction of the ingredients.
Performance and Quality
Pastochef RTL machines are a fundamental aid when it comes to using automation to prepare recipes that usually require a great deal of time and manual work. These pasteurizing machines contain the very latest Carpigiani technology for certain results and maximum practical use.
Heating & cooling via dry bain-marie system guarantees consistent heat exchange, performance and energy consumption. Also avoids potential burns or encrustations on the cylinder surfaces.

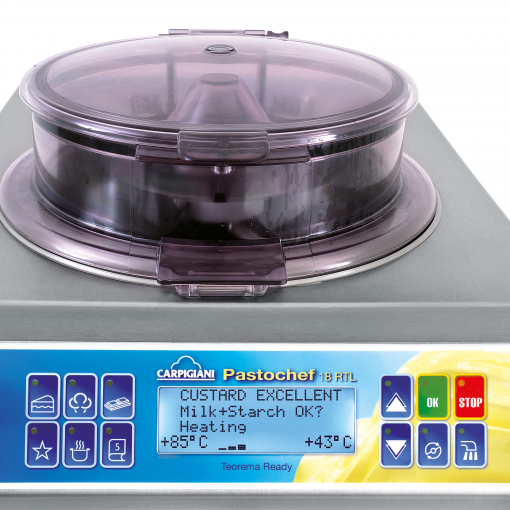

To ensure the success of each program, the display guides the operator, showing the production phases, temperatures, and suggestions for adding ingredients.
The machine includes a recipe book with detailed recipes and information on ingredients that can be downloaded by scanning the QR Code on the front of the machine.
The scraper paddles of the beater and the special form of the removable flap create a spiral movement in the mix, vertically and horizontally, to guarantee complete mixing and cooking of the product.
Scan the QR Code on the front of the machine to access the most up to date equipment information: Instruction Manual, Carpi Care kit & Carpi Clean kit.

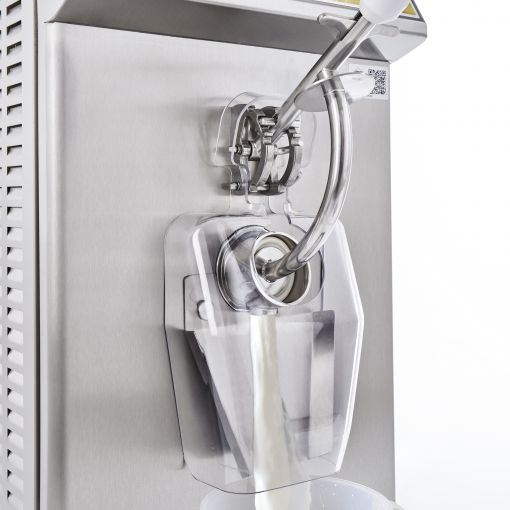

The extraction spigot has three positions:
Durable rubber shelf mat
Energy savings thanks to the high efficiency electric motors and high performance capacitors.
Black-Out and Water Supply Cut-Off

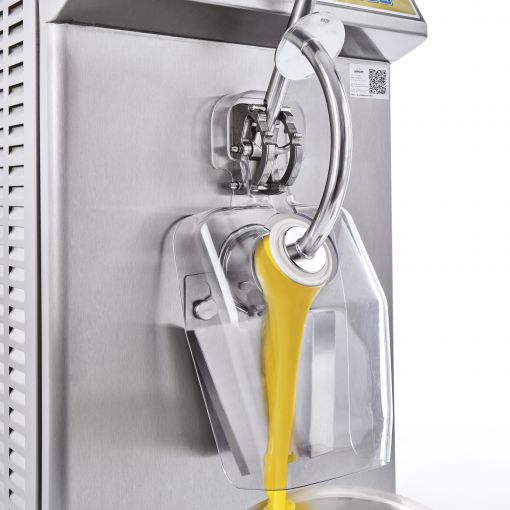

Double safety Extraction Spigot
When the temperature exceeds 50 °C during hot productions, the display turns red to warn the operator that the products inside the machine are heating and cooking.
Reduced risk of injury, with corners even more rounded where the operator works.
Washing of the cylinder can be sped up by heating the surface, which rapidly detaches and melts any residual fat left over from production.
The extraction chute is removable

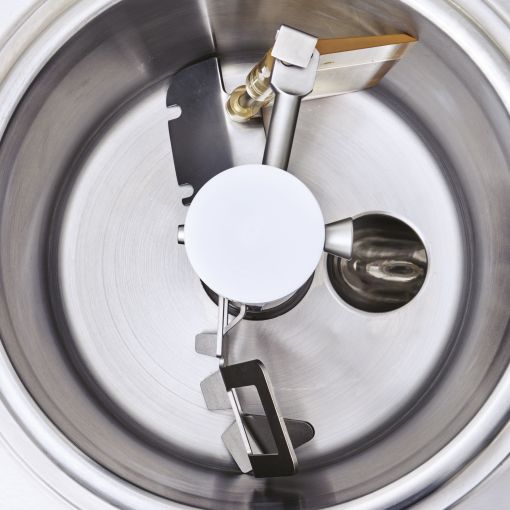

The Monolithic upper cylinder and spigot are a single continuous piece
Carpi Care kit - Carpi Clean kit: request them from your dealer to always keep your machine hygienically perfect.
|in 2 hours lt||15|
|Quantity per cycle | Programs|
|Chocolate | max. kg||15|
|Chocolate | min. kg||5|
|Custard | max. kg||15|
|Custard | min. kg||7|
|Fuse Size A||10|
|Rated Power Input kW||2,1|
|Dimension at base Depth cm||61,4|
|Dimension at base Height cm||111|
|Dimension at base Width cm||45|
|Net Weight kg||150|
|Note||The hourly production rate varies according to the ingredients used. Production rates refer to an ambient temperature of 25°C and a water temperature of 20°C in the condenser. * Other voltages and cycles are available with additional charge ** Air-cooled versions available with additional charge The above dimensions and weight refer to the water cooled version. The Pastochef RTL machines are made by Carpigiani according to a Certified Quality System UNI EN ISO 9001. All specifications mentioned must be considered approximate; Carpigiani reserves the right to modify, without notice, all parts deemed necessary.|
