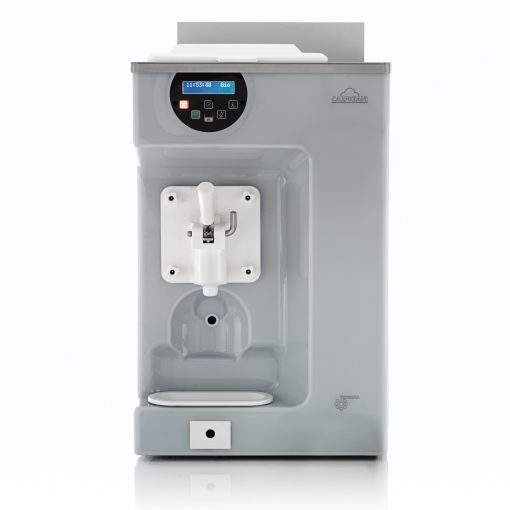

It is compact, has an attractive look and it guarantees top production results
Excellent production results
Even if its limited in size, its performance is superior to other machines in its same category
Versatile
It allows you to vary the overrun so that you can use any type of mix and produce special shakes
Compact
It is the smallest in its range.
It adapts to any type of situation using the innovative condensing system
Optional configurations
Teorema Remote Control
Provides an e-maintenance service that lets you manage your equipment more efficiently with Real-Time Remote & in-Store: Product Quality adjustments, Clean Cycle Indication, Volumes and Remote Diagnostics
Features & Benefits
Direct expansion cooling cylinder
Optimizes refrigeration efficiency for fast freeze downtime, less waste of product ensuring higher quality and energy saving
Rear chimney and reduced footprint
Space optimization and machine installation next to each other
Interactive display
Communicates with the operator delivering instructions and data regarding machine performance
Tank agitator
Prevents product stratification and helps to reduce foam by maintaining a fluid consistency
Self closing device
The dispenser is equipped with an automatic self closing system to stop the flow of shake, eliminating any waste
Adjustable product flow
Adjustable product flow to meet your specific dispensing speed and volume requirements
High capacity cylinder
Perfect for all dispensing circumstances, including the moments of greater production pressure
Self-pasteurization
With our self-pasteurization system the machine can be cleaned and disassembled only 9 times per year
Simplified cleaning
Cleaning is simplified thanks to the possibility of the cylinder heating and the easy disassembly of the dispensing unit
| Technical Characteristics | |
|---|---|
| flavour | 1 |
| Mix Delivery System | Pump |
| Cylinder Capacity | |
| lt | 7 liters (1.8 gal) |
| Hopper Capacity | |
| Hopper Capacity | 12 liters (12.7 quarts) |
| Hourly production | |
| 16 oz / 0,4 lt | 130 *production capacity depends on the mix and the room temperature |
| Electrical | |
| Cooling System | Air or Water |
| Hz | 60 |
| Ph | 3 |
| Volt | 208-230 |
| Fuse Size A | 20 Amps max fuse size, 15 Amps minimum circuit ampacity |
| Refrigerant | |
| Refrigerant | R-404A |
| Dimensions | |
| W x D x H cm max | 52.3 x 79.6 x 35.6 cm (20.6 x 31.3 x 35.6 in) |
| Net Weight kg | 170 kg (375 lb) |
| Note | |
| Note | 191 K SP is produced by Carpigiani with UNI EN ISO 9001 Certified Quality System, cULus Safety and EPH Sanitation. All specifications mentioned must be considered approximate; Carpigiani reserves the right to modify, without notice, all parts deemed necessary. |
