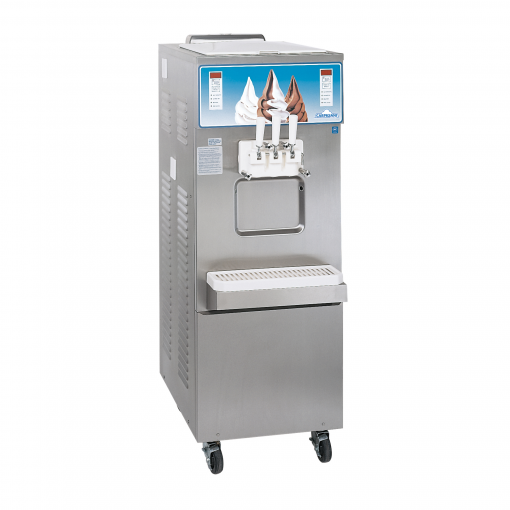

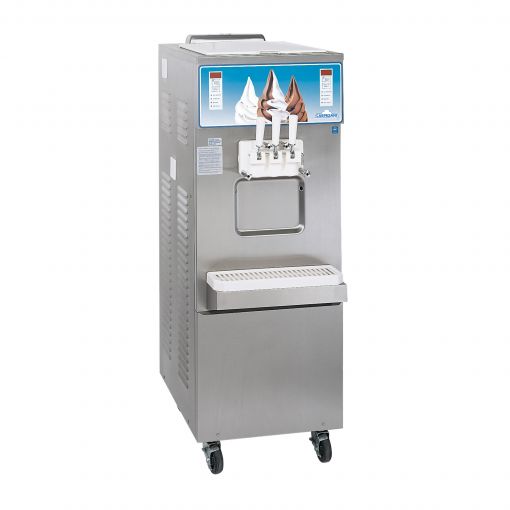

UF 263

Twin-twist Floor model

The high performance Carpigiani UF-263 soft serve freezer combines state-of-the-art design and technology with simple and efficient operation. The UF-263 provides high production for two individual flavors of frozen dessert and combination twist. This freezer will outperform any comparably-sized freezers. Designed to allow the greatest flexibility when changing products. Will serve ice cream, custard, water ice, yogurts, sherbets in any combination.

Features:

  • Exclusive Hot Gas Technology!
  • Separate touchpad controls for each cylinder lets you make combination twists of differing products
  • Labor saving gravity mix feed system offers simple operation and smoother, creamier product
  • Unique freezer cylinder optimizes refrigeration efficiency
  • Standby/energy conservation switch reduces operation costs during idle periods
  • Low mix indicator lights with audible signal
  • Self-monitoring system minimizes costly errors
  • Built-in memory stores information to facilitate repairs
  • Fewest parts to clean in the industry
Technical Characteristics
Beater Thermo plastic
flavour 2+1
Tank Capacity
min. lt 18 quarts each
Hopper Capacity
Hopper Capacity 18 quarts each
Electrical
Condenser Air or Water
Hz 60
Ph 1 or 3
Volt 208-230
Fuse Size A 40 Amps max fuse size with 36 running Amps on the single phase model. 30 amps max fuse size with 25 running Amps on the three-phase model. 1 feeder.
Refrigerant
Refrigerant R-404A
Dimensions
Dimension at base Depth cm 84 cm (34 in)
Dimension at base Height cm 142.2 cm (56 in) - without legs or casters.
Dimension at base Width cm 56 cm (22 in)
Net Weight kg 318 kg (700 lbs) without accessories; Gross weight 360 kg (792 lb) without accessories.
Note
Note Overrun range is up to 40%.
