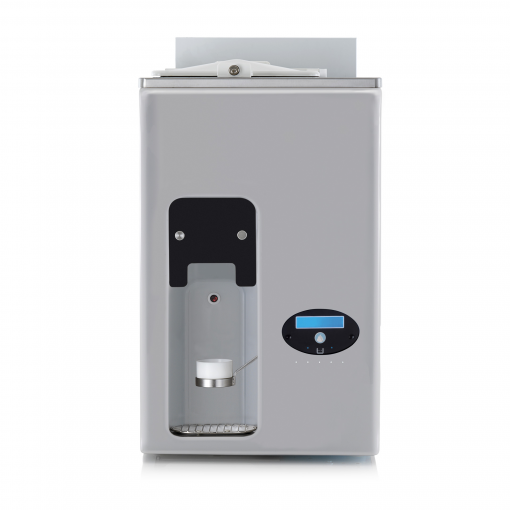

The 191 machine is a semi-automatic Portion controller
High efficiency components
Achieve top performances and non-stop production
High performance machine
Its best location is in sites with many potential consumers, such as shopping centers, arcades, water parks, amusement parks, etc.
Overrun and consistency control
Different consistency control settings for various mix types and easy adjustable overrun
Optional configurations
Self-pasteurization
With our self-pasteurization system the machine can be cleaned and disassembled 9 times per year
Teorema Remote Control
It gives very important info about the machine, it facilitates the service system and helps the cleaning schedule
Protected dispensing
After placing the cup on the cup holder and having selected the flavour, the gelato is dispensed, always in a protected area
Features & Benefits
Direct expansion cooling cylinder
Optimizes refrigeration efficiency for fast freeze downtime, less waste of product ensuring higher quality and energy saving
Rear chimney and reduced footprint
Space optimization and machine installation next to each other
Interactive display
Communicates with the user giving him instructions and data regarding the performance of the machine
Gear pump
It pressurizes the mix with air and feeds the production cylinder for a creamier gelato with a high volume increase
High capacity cylinder
Perfect for all dispensing circumstances, including the moments of greater production pressure
Product protection
The upper refrigerated tank lid is key locked to prevent product contamination
Simplified cleaning
Cleaning is facilitated thanks to the possibility of heating the cylinder and to the easy disassembly of the dispensing unit
| Caratteristiche tecniche | |
|---|---|
| flavour | 1 |
| Sistema di trasporto miscela | Pump |
| Capacità cilindro | |
| lt | 1,75 lt |
| Capacità vasca | |
| lt | 13 lt |
| Produzione Oraria | |
| Porzioni 75gr | 320 (production capacity depends on the mix used and the room temperature) |
| Elettrico | |
| Sistema di raffreddamento | Air |
| Volt/Hz/Ph | 400/50/3 (other voltages and cycles available upon request) |
| Fusibile A | 10 A |
| Potenza nominale kW | 2,9 kW |
| Gas refrigerante | |
| Gas refrigerante | R452 (alternative solutions available) |
| Dimensioni | |
| Peso netto kg | 120 kg |
| Note | |
| Note | 191 SA P SP is produced by Carpigiani with Quality System UNI EN ISO 9001. All specifications mentioned must be considered approximate; Carpigiani reserves the right to modify, without notice, all parts deemed necessary. |
