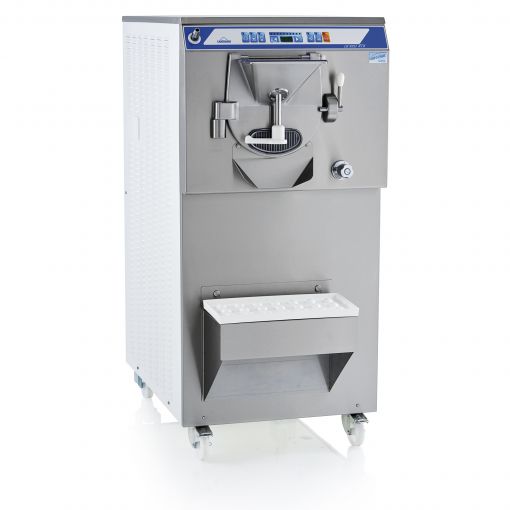

LB 1002 RTX

Classic Ice Cream Batch Freezer

A classic Carpigiani machine designed to create the best Ice Cream, Sherbet, Water Ice & Premium Custard for the start up Ice Cream business.

A classic Carpigiani machine designed to create the best Ice Cream, Sherbet, Water Ice & Premium Custard for the start up Ice Cream business.

Performance

Patented Hard-O-Dynamic technology achieves desired consistency with any batch size.

Electronic controls automatically maintain product until extraction begins.

POM Beater resists extreme hot and cold temperatures and includes auto-adjusting scrapers for complete extraction.

Convenience

Automatic Control provides unparalleled flexibility and ease of operation.

Audible alarm signals when product achieves desired consistency.

Maximized extraction results in minimal flavor overlap with less frequent rinsing.

Operations are done standing up for user comfort.

Optional shelf mat designed to hold trays & tubs during extraction is available.

Savings

Lowest power consumption in the industry while providing some of the quickest batch freezing times.

Self-adjusting scraper can be replaced without needing a new beater.

Air-cooling option available

Safety

Automatic defrost starts during power outages to avoid damage to beater.

Rounded corners reduce risk of injury to operator.

Hygiene

Built-in faucet with flex hose makes cleaning fast and easy.

Removable extraction chute for easy cleaning.

Scotch-Brite treated steel is resistant to stains and fat residues.

Ask your Carpigiani dealer for the “Carpi Care Kit” to best maintain equipment.

Technical Characteristics
Beater 1.5 HP Drive motor; Unibody design with Delrin Blades
Cylinder Capacity
lt 37 quarts (with beater)
Electrical
Cooling System Water
Hz 603
Volt 208-230
Fuse Size A 70 Amps Breaker Size, 50 Running Amps, 1 feeder
Refrigerant
Refrigerant R-404A
Dimensions
Dimension at base Depth cm 114.2 cm (45 in)
Dimension at base Height cm 141.2 cm (55 3/8 in) with casters
Dimension at base Width cm 66.2 cm (26 1/8 in)
Net Weight kg 450 kg (990 lb) net weight; 478 kg (1052 lb) gross weigh
Note
Note All specifications mentioned must be considered approximate. Carpigiani reserves the right to modify, without notice, all parts deemed necessary.
