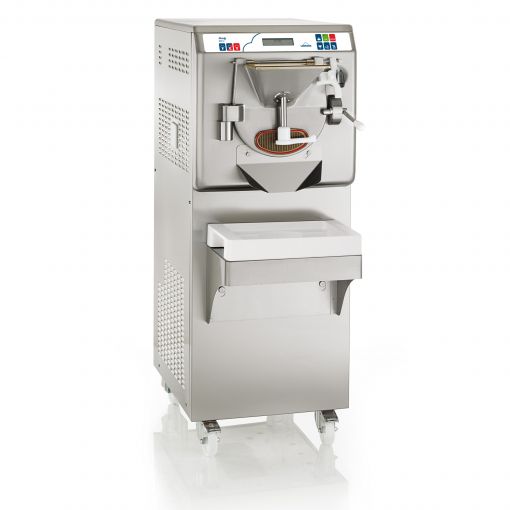

Ready 502 G

20qt Gelato & Low Overrun desserts Batch Freezer

Dynamic Carpigiani Technology allows you to heat and batch freeze mixtures to produce the best Gelato, Sorbetto, Low Overrun desserts & Frozen Pastries


Performance

Mix, heat and freeze in the same cylinder.

Hard-O-Tronic technology: automatic consistency control to determine when the product is complete.

POM Beater resists extreme hot and cold temperatures and includes auto-adjusting scrapers for complete extraction.

Post Cooling ensures frozen dessert is cold upon extraction.

Convenience

Water filling capability delivers the precise amount of water required for mixtures and cleaning functions, saving time and avoiding dosage errors.

Intuitive control panel is accessible even while adding mix.

Operations are done standing up for user comfort.

Shelf mat is designed to hold both trays and tubs during extraction.

Crystal setting can be used to create frozen pastries, mono portions and packaged servings with optional dispensing door.

Savings

Ready technology makes it possible to complete entire Gelato production process in just one machine.

Safety

TEOREMA guarantees facilitated assistance by providing online monitoring and diagnosis on a tablet, phone or PC wherever you are.

Automatic defrost starts during power outages to avoid damage to beater.

Rounded corners reduce risk of injury to operator.

Hygiene

Cleaning is easier thanks to high temperature cleaning cycle and removable extraction chute.

The cylinder and front panel is continuous stainless steel for maximum cleanliness and hygiene.

Scotch-Brite treated steel is resistant to stains and fat residues.

“Postponed cleaning” program guarantees hygienic safety even during prolonged production stand-by due to washing out remaining product residuals left at the end of the batch freezing cycle.

Ask your Carpigiani dealer for the “Carpi Care Kit” to best maintain your Ready model


Cylinder Capacity
lt 19 liters (20 quarts)
Electrical
Cooling System Water cooled version has water inlets and drain connections in the rear 1/2” MPT. The Air Cooled version needs a minimum clearance of 39.4’’ (100 cm) on both side panels and 16" (47 cm) from the rear panel for proper air circulation.
Dimensions
Dimension at base Depth cm 72 cm (28.3 in) for water version; 92 cm (36.3 in) for air versions
Dimension at base Height cm 140 cm (55.2 in) for both water and air versions
Dimension at base Width cm 53 cm (20.8 in) for both water and air versions
Net Weight kg WATER COOLED 375 kg (827 lb) net weight, 395 kg (871 lb) crated weight; AIR COOLED 400 kg (882 lb) net weight, 423 kg (933 lb) crated weight.
