Labotronic 25 110 HE-H
Intelligent Technology that decides what's best for your gelato
Just one button, Just one button for many programs.: Gelato Excellent, Gelato Speed, Gelato Hard, Gelato Simply, Gelato Zero+, Sorbet Zero+, Gelato Crystal, Gelato Hot, Gelato Hot Age, Gelato Hot&Cold, Fruit Cremolata.
Optional Inverter: Gelato Garnish, Gelato Manual, Sicilian slush and Comfort:variegation.
Optional beater for Ice Cream: Ice Cream.
Beater without central shaft and with POM blades for the total extraction of the gelato.
Self-regulating scraper blades for constantly cleaning the cylinder and maximizing yield.
Post-cooling: activation of cold temperatures during extraction to maintain the consistency of the gelato.
Use of the machine while always standing straight.
Stainless steel sprayer with lock at the front of the machine, to facilitate washing.
Easy way: prepare and pasteurize the mix with the batch freezer.

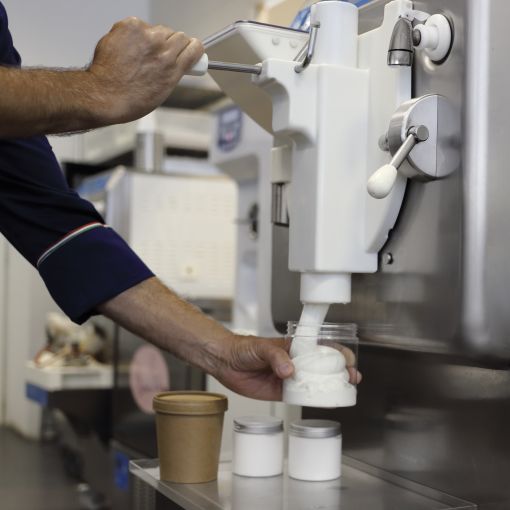

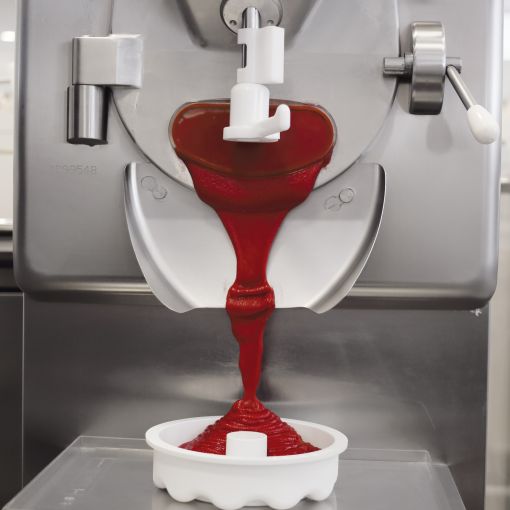

Optional Dispensing door, together with the Crystal program used for filling containers and jars.

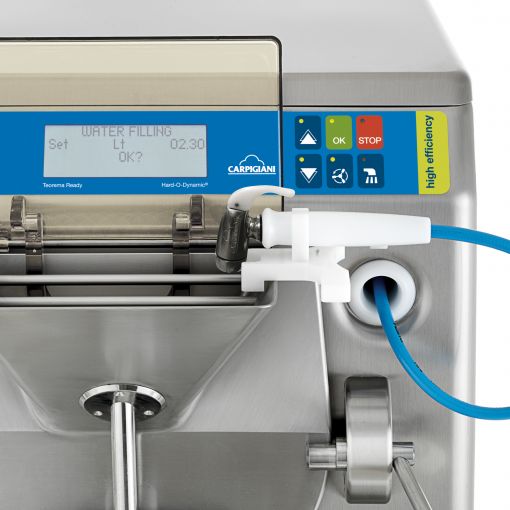

Optional Water Filling to dispense the precise amount of water required, saving time and avoiding measurement errors.
Tray-lock mat facilitates extraction and variegation.
Customizable production menu.
Carpigiani’s High Efficiency technology allows a reduction in production time and the consumption of electricity and water up to 30% compared to Carpigiani batch freezers of previous generations (30% compared to RTX models).
Accident prevention thanks to rounded corners.
Auto Defrost procedure for rapidly restarting production in case of power failure or accidental stoppage.
Optional Teorema: monitoring and diagnosis via the internet for easier assistance.
One-piece cylinder for maximum cleanliness and guaranteed hygiene.
Stainless steel wheels.
Hot wash, detachable extraction chute and Scotch-Brite treatment of the steel sheet metal facilitate cleaning.
The delayed cleaning cycle guarantees hygienic by controlling the temperature of the cylinder once the gelato has been extracted.
Carpi Care kit & Carpi Clean kit: request them from your dealer to keep your machine hygienically perfect.
|Qty per cycle max. lt||24|
|Qty per cycle min. lt||6,5|
|Hourly amount max. lt||152|
|Hourly amount min. lt||35|
|Hourly amount max. kg||110|
|Hourly amount min. kg||25|
|Quantity per batch|
|max. kg||17 kg|
|min. kg||4,5* kg|
|Quantity per cycle | Programs|
|Cremolata | max. kg||17|
|Cremolata | min. kg||7|
|Crystal | max. kg||17|
|Crystal | min. kg||7|
|Slush | max. kg||17**|
|Slush | min. kg||7**|
|Zero+ | max. kg||16|
|Zero+ | min. kg||4,5|
|Fuse Size A||32|
|Fuse Size with inverter||25|
|Rated Power Input kW||11|
|Dimension at base Depth cm||65|
|Dimension at base Height cm||140|
|Dimension at base Width cm||52|
|Net Weight kg||420|
|Note||The quantity per cycle and production time vary based on mixes used. The “Max” values refer to classic Italian artisanal gelato. Performance values refer to 25°C room temperature and 20°C water temperature in the condenser. * Quantity for “Excellent” program ** HE-H I models only *** Other voltages and cycles available with surcharge. **** Air condenser available with surcharge. The above dimensions and weight refer to the water cooled version. The Labotronic HE-H are manufactured by Carpigiani using a UNI EN ISO 9001 Certified Quality System. All specifications mentioned must be considered approximate; Carpigiani reserves the right to modify, without notice, all parts deemed necessary.|
