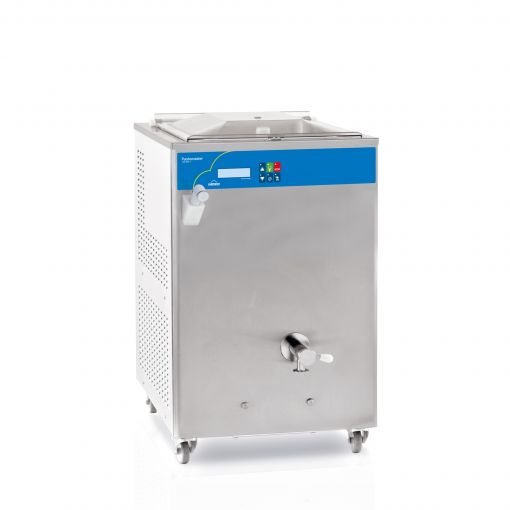

Pastomaster 120 XPL P

The technology that boosts your work

The XPL P Pastomasters are pasteurizers that are easy to use, simple to manage, and useful in any gelato production space.

Quality

7 basic programs for the production of gelato mixes: High pasteurization 85°C, Low pasteurization 65°C, Intermediate pasteurization with choice of temperature between 65°C and 95°C, Chocolate pasteurization 90°C, Cooling and Aging at 4°C, Sugar syrup and Inverted sugar.

Performance

The ingredients are mixed and pasteurized inside the exchanger pump with “dry bain-marie,” a Carpigiani patent that guarantees:

High micronization of fat globules to a fine size of 2-5 microns for creamy gelato,

Superior Efficiency that allows working even with minimal batches without the risk of burning the mix.

Convenience

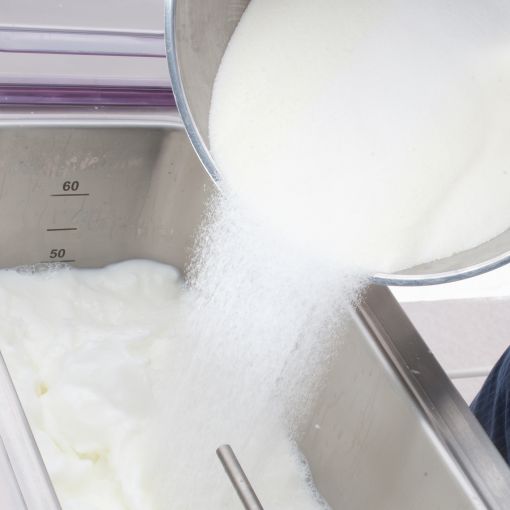

Lid and exchanger pump: you can introduce ingredients while the mix is being stirred, working in complete safety.

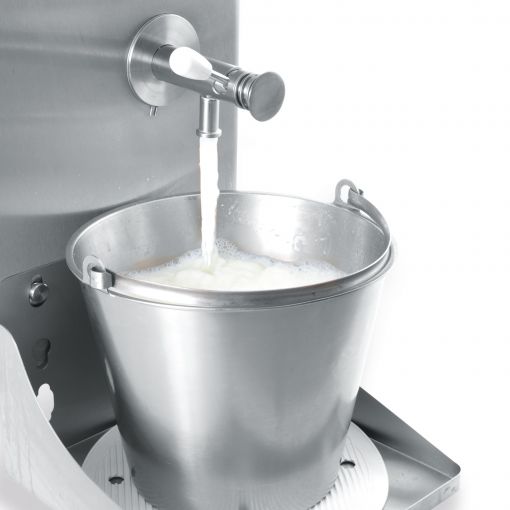

Optional Steel bucket shelf.

Optional Kit for hygienically transferring the mix.

Savings

The XPL P Pastomasters are pasteurizers that allow you to do your job easily and to save time.

Safety

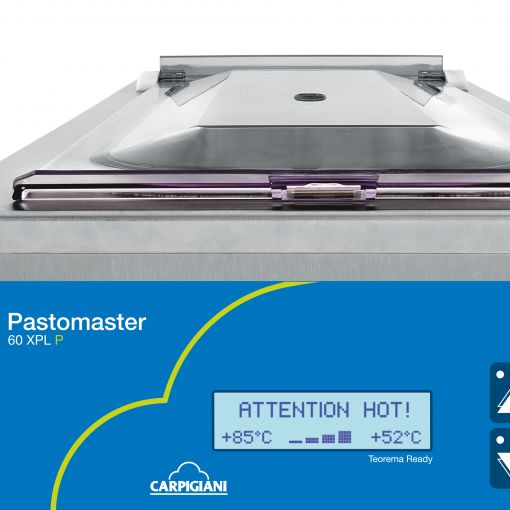

Cover and Display: When the mix is hotter than 50°C, stirring stops when you lift the lid to avoid splashes of hot liquids. The display shows the message “Warning Boiling.”

Blackout and Water supply cutoff: based on time and temperature parameters, the machine checks if the mix has suffered an alteration or not and if necessary starts a new pasteurization cycle.

Optional Teorema: monitoring and diagnosis via the internet for easier assistance.

Hygiene

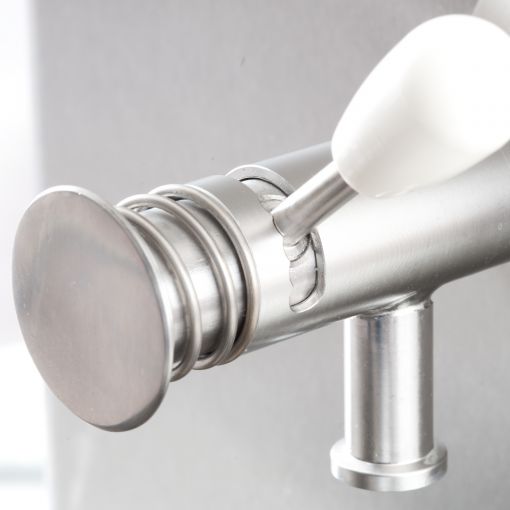

Temperature-controlled spigot: the mix circulates continuously inside the tap, ensuring its correct operating temperature.

Total cleaning: the tap can be completely disassembled, washed, and inspected to guarantee maximum machine hygiene.

Carpi Care kit: request one from your dealer to keep your machine hygienically perfect.

Production
max. lt 120
min. lt 30
Electrical
Condenser Water**
Hz 50*
Ph 3*
Volt 400*
Fuse Size A 32
Nominal Power kW 11,2
Dimensions
Dimension at base Depth cm 86
Dimension at base Height cm 103
Dimension at base Width cm 65
Net Weight kg 269
Note
Note Production rates refer to a room temperature of 25°C and a water temperature of 20°C in the condenser. * Other voltages and cycles are available with surcharge. ** Also available with air cooling with surcharge. The above dimensions and weight refer to the water cooled version. Pastomaster XPL P machines are produced by Carpigiani with a UNI EN ISO 9001 Certified Quality System. All specifications mentioned must be considered approximate. Carpigiani reserves the right to make any changes it deems necessary without prior notice.
