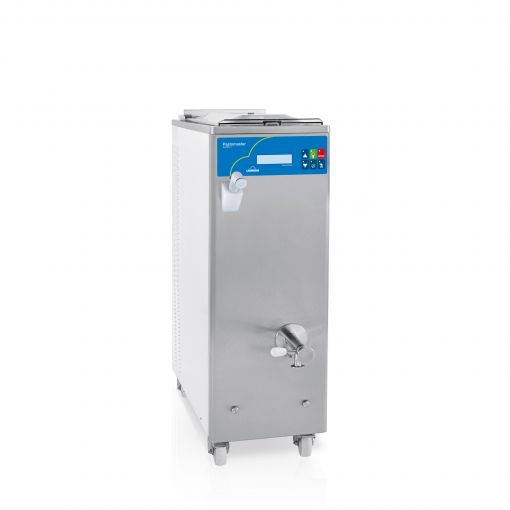

Pastomaster 60 XPL P

The technology that boosts your work

The XPL P Pastomasters are pasteurizers that are easy to use, simple to manage, and useful in any gelato production space.

Quality

7 basic programs for the production of gelato mixes: High pasteurization 85°C, Low pasteurization 65°C, Intermediate pasteurization with choice of temperature between 65°C and 95°C, Chocolate pasteurization 90°C, Cooling and Aging at 4°C, Sugar syrup and Inverted sugar.

Performance

The ingredients are mixed and pasteurized inside the exchanger pump with “dry bain-marie,” a Carpigiani patent that guarantees:

High micronization of fat globules to a fine size of 2-5 microns for creamy gelato,

Superior Efficiency that allows working even with minimal batches without the risk of burning the mix.

Convenience

Lid and exchanger pump: you can introduce ingredients while the mix is being stirred, working in complete safety.

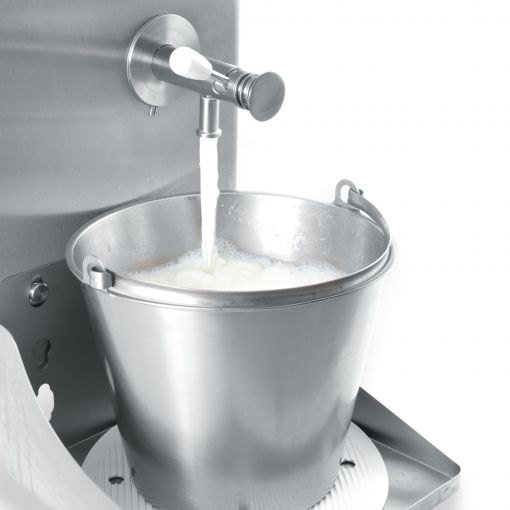

Optional Steel bucket shelf.

Optional Kit for hygienically transferring the mix.

Savings

The XPL P Pastomasters are pasteurizers that allow you to do your job easily and to save time.

Safety

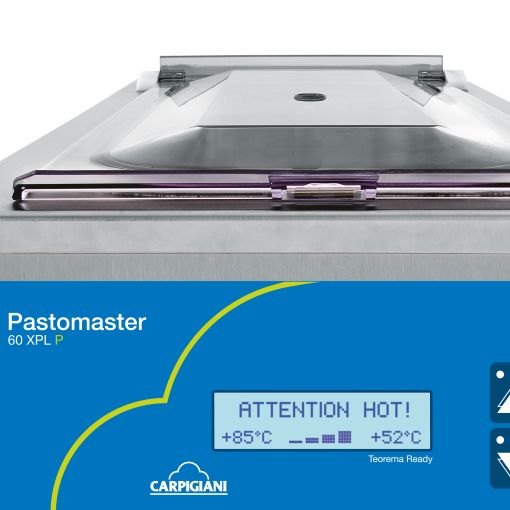

Cover and Display: When the mix is hotter than 50°C, stirring stops when you lift the lid to avoid splashes of hot liquids. The display shows the message “Warning Boiling.”

Blackout and Water supply cutoff: based on time and temperature parameters, the machine checks if the mix has suffered an alteration or not and if necessary starts a new pasteurization cycle.

Optional Teorema: monitoring and diagnosis via the internet for easier assistance.

Hygiene

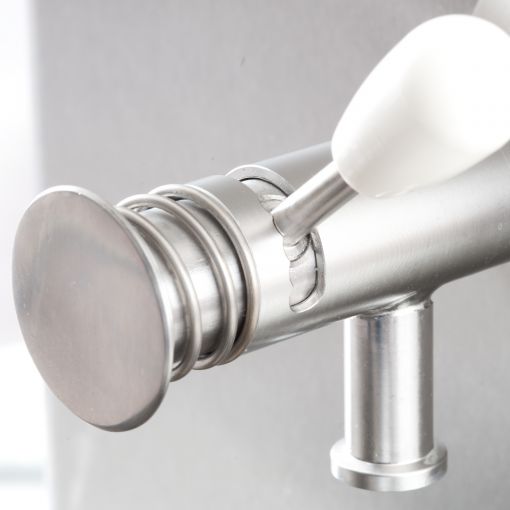

Temperature-controlled spigot: the mix circulates continuously inside the tap, ensuring its correct operating temperature.

Total cleaning: the tap can be completely disassembled, washed, and inspected to guarantee maximum machine hygiene.

Carpi Care kit: request one from your dealer to keep your machine hygienically perfect.

Production
max. lt 60
min. lt 15
Electrical
Condenser Water**
Hz 50*
Ph 3*
Volt 400*
Fuse Size A 16
Nominal Power kW 7
Dimensions
Dimension at base Depth cm 86
Dimension at base Height cm 103
Dimension at base Width cm 35
Net Weight kg 162
Note
Note Production rates refer to a room temperature of 25°C and a water temperature of 20°C in the condenser. * Other voltages and cycles are available with surcharge. ** Also available with air cooling with surcharge. The above dimensions and weight refer to the water cooled version. Pastomaster XPL P machines are produced by Carpigiani with a UNI EN ISO 9001 Certified Quality System. All specifications mentioned must be considered approximate. Carpigiani reserves the right to make any changes it deems necessary without prior notice.
