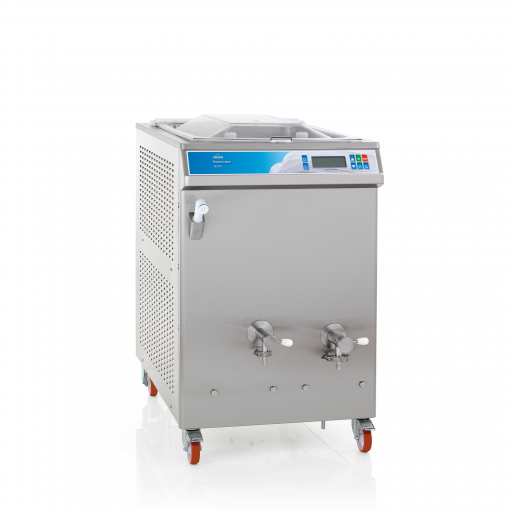

Pastomaster 180 RTL

Automatic Gelato mix pasteurizer

High micronization: the millimetric cup-beater coupling and the different mixing speeds reduce the fat globules to particularly fine sizes, from 2 to 5 microns, for a gelato that is more creamy and stable.

Performance and functions

  • Partialization of production capacity from 30 to 180 kg
  • Automatic Pasteurization cycle
  • Tank capacity from 30 to 180 kg per cycle
  • All components in contact with the mix are in stainless steel and polymers food approved
  • Mixing from the bottom side that ensures full accessibility to the tank
  • Tank cover in polymer
  • N. 2 taps for mix output
Tank Capacity
max. lt 180 (Hourly production can vary with the mix used and operating conditions).
min. lt 30 (Hourly production can vary with the mix used and operating conditions).
Electrical
Condenser Water
Hz 50
Ph 3
Volt 400
Fuse Size A 28
Nominal Power kW 17,5
Dimensions
Dimension at base Depth cm 106
Dimension at base Height cm 119
Dimension at base Width cm 75
Net Weight kg 345
Note
Note Data was collected at 25°C ambient temperature. The Pastomaster 180 RTL machines are made by Carpigiani according to a Certified Quality System UNI EN ISO 9001. All specifications mentioned must be considered approximate; Carpigiani reserves the right to modify, without notice, all parts deemed necessary.
