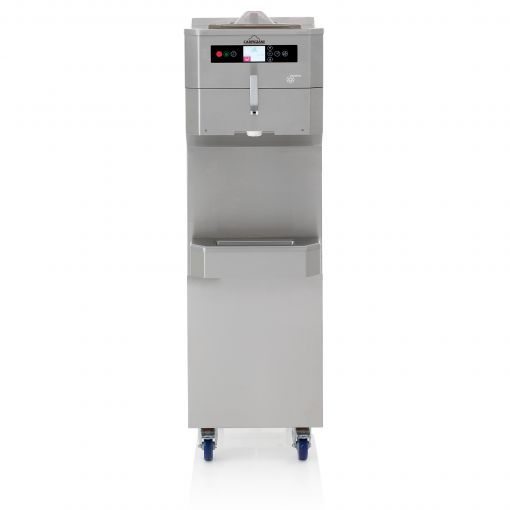

XVL 1 Steel

Single flavour floor standing pump machine to produce soft ice cream and frozen yogurt

Very high production capacity and versatility: the machine satisfies all customer needs

Large production capacity
Continuous production is guaranteed even during peak hours

Production flexibility and versatility
Satisfy all your customers’ needs by offering a wide range of products: soft serve ice cream, frozen yogurt, fruit sorbets and single portions

Overrun and consistency control
Different consistency control settings for various mix types and easy adjustable overrun

Optional configurations

Self-pasteurization
With our self-pasteurization system the machine can be cleaned and disassembled only 9 times per year
Teorema Remote Control
It gives very important info about the machine, it facilitates the service system and helps the cleaning schedule
Single portions kit
Optional nozzles to fill cups and tartlets and to produce ice cream single portions
Mixer
Optional mixer with disposable spoons to swirl toppings into the ice cream
Dry Filling System
Possibility of preparing the mix directly in the hopper by adding water and dry mix

Features & Benefits

Stainless steel pressurized gear pump in Advanced Thermoplastic Polymer
The pump ensures the best ice cream texture, quality and high overrun, adjustable from 40% to 80%
Independent pump transmission
Helps to extend the life-span of the pump and gears and allows for flexibility and maximum performance
Interactive display
Communicates with the operator delivering instructions and data regarding machine performance
Tank agitator
Prevents product stratification and helps to reduce foam by maintaining a fluid consistency
2E-RSI high efficiency beater
Interchangeable plastic scrapers and shaft for a soft, creamy gelato
Self closing device
The dispenser closes automatically stopping the flow of ice cream, eliminating any waste and preventing mess
Adjustable ice cream flow
Adjustable product flow to meet your specific dispensing speed and volume requirements
Direct expansion cooling cylinder
Optimizes refrigeration efficiency for fast freeze downtime, less waste of product ensuring higher quality and energy saving
Defrost system
Possibility to heat the cylinder to simplify the cleaning procedure
Technical Characteristics
flavour 1
Mix Delivery System Pump
Cylinder Capacity
lt 1,75
Tank Capacity
lt 13
Hourly production
75 gr portions 510 (production capacity depends on the mix used and the room temperature)
Electrical
Cooling System Air, water optional
Hz 50*
Ph 3*
Volt 400*
Fuse Size A 10
Rated Power Input kW 2,5
Refrigerant
Refrigerant R452 (alternative solutions available)
Dimensions
Net Weight kg 230
Air-cooled version | W x D x H cm 45 x 93 x 160,5
Note
Note *other voltages and cycles available upon request. XVL 1 Steel is produced by Carpigiani with Quality System UNI EN ISO 9001. All specifications mentioned must be considered approximate; Carpigiani reserves the right to modify, without notice, all parts deemed necessary.
