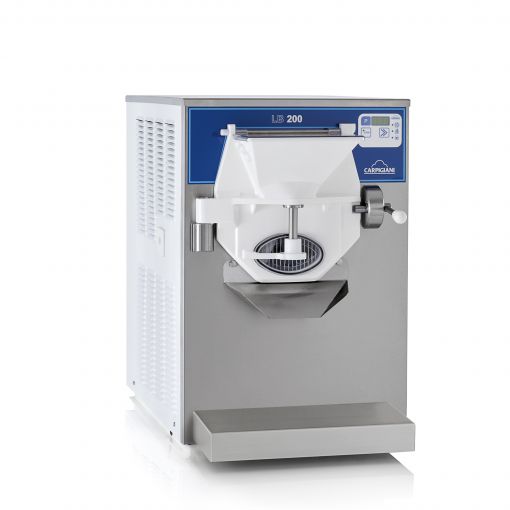

LB 200 G Tronic

Counter-top Gelato Batch Freezer

Counter Top Batch Freezer to accommodate a range of production needs for Gelato, Sorbet, Premium Custard & low overrun Frozen Desserts.

Performance

Full size freezing chamber Makes up to 5 quart batches.

Adjustable electronic consistency control ensures product consistency at different loads.

Can accommodate both small and large production needs

Self-adjusting scraper blades create creamy Gelato texture.

Convenience

Runs on single phase power to fit into almost any setting.

Countertop machine can fit into most locations.

Electronic touch pad provides operational information.

Easy to handle machine automatically provides appropriate consistency regardless of the ingredients used in each flavor.

Opportunity & Savings

Add freshly made Ice Cream to the product offer and gain independence on choice of flavors and cost.

Self-adjusting scraper can be replaced without needing a new beater.

Air-cooled version is available.


Hygiene

Door design aids complete extraction, resulting in minimal product residue and flavor overlap.


Technical Characteristics
Beater 2 HP drive motor; Unibody with Replaceable blades
Cylinder Capacity
lt 5 quarts (with beater)
Electrical
Condenser Air or Water
Cooling System Water Cooled has water inlets and drain connections in the rear 1/2" MPT;
Hz 60
Ph 1
Volt 208-230
Fuse Size A 40 Amps
Refrigerant
Refrigerant R-404A
Dimensions
Dimension at base Depth cm 73.7 cm (29 in)
Dimension at base Height cm 71.1 cm (28 in)
Dimension at base Width cm 48 cm (19 in)
Note
Note All specifications mentioned must be considered approximate; Carpigiani reserves the right to modify, without notice, all parts deemed necessary. This unit may be manufactured in other electrical characteristics and may have additional regulatory agency approvals, please consult the local Carpigiani Distributor. Check name plate for exact electrical data. A dedicated electrical connection is required. Manufactured to be permanently connected. See the Electrical chart for the proper electrical requirements. Consult your local Carpigiani distributor for cord & receptacle specifications as local codes allow.
